Service Blueprint: The Wiring Diagram Behind User Journeys
A service blueprint X-rays the hidden machinery behind a customer journey. Use it for omnichannel services crossing departments. The footgun is producing generic diagrams untethered from a specific business goal like reducing redundancy.
Why it exists
Customer journey maps show what a user feels and does, but they hide the organizational machinery that makes or breaks the experience. When a service fails, the symptom appears at a touchpoint but the cause often lies in a backstage process, a missing integration between departments, or redundant data collection. Service blueprinting was created to close that visibility gap and give teams a way to see the full operating system behind the user interface.
The mental model
Think of a service blueprint as the architectural wiring diagram for an experience. While a customer journey map is the floor plan from the visitor's perspective, the blueprint exposes the load-bearing walls, electrical conduits, and plumbing that must exist behind the drywall. It makes the invisible infrastructure visible so you can trace a fault from a flickering light all the way back to a breaker box in the basement.
How it works

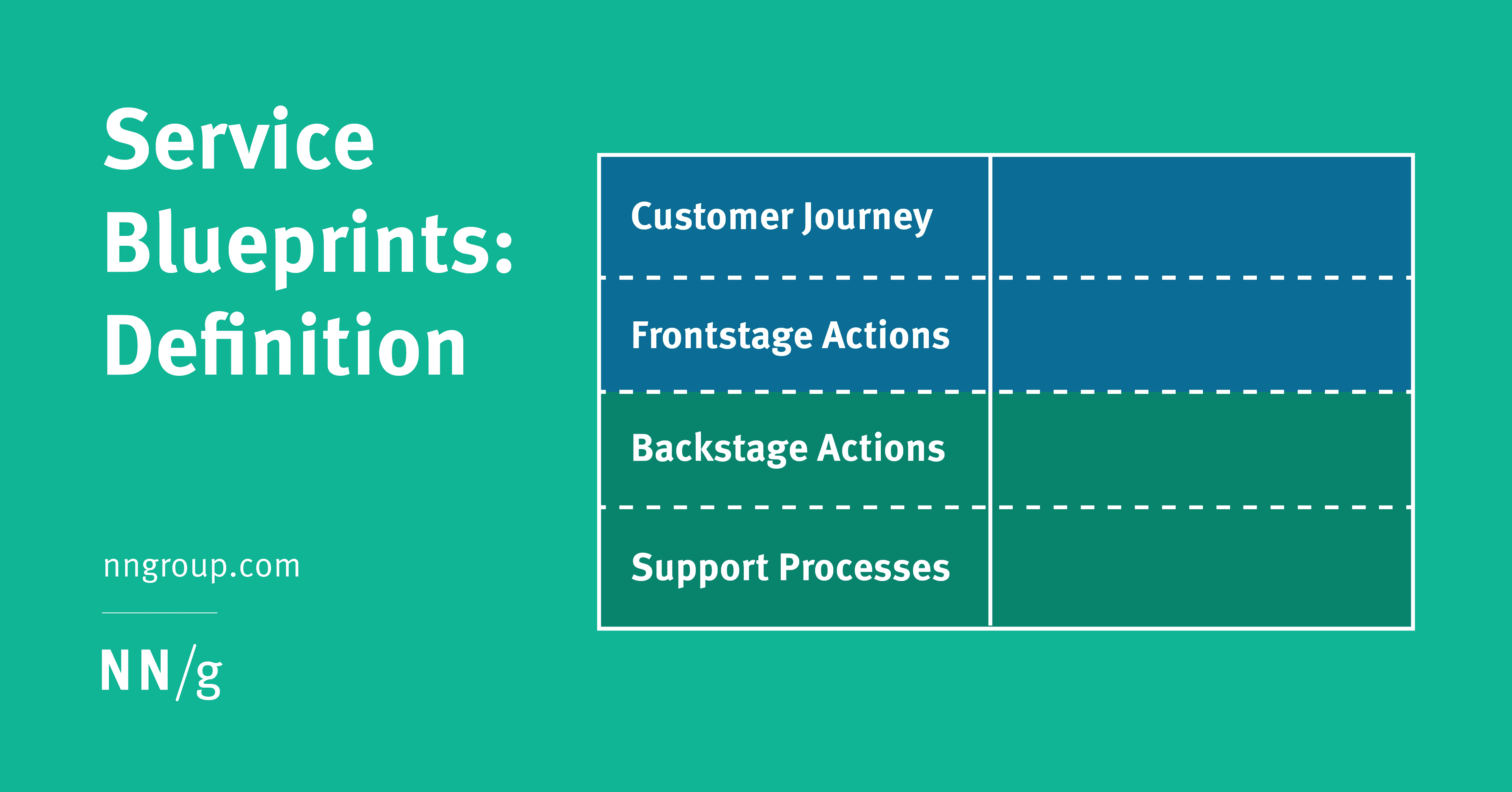

A service blueprint maps three core components across the stages of a specific customer journey. People include everyone involved, from customers to frontstage employees and backstage staff. Props are the physical or digital evidence used at each touchpoint, such as a mobile app, a receipt, or a kitchen display system. Processes are the workflows and rules that connect these elements. The diagram is organized with lines that separate customer actions, frontstage interactions, backstage activities, and support processes, revealing dependencies and handoffs between them.
When to use it
Reach for a service blueprint when you are designing or optimizing complex services that span multiple channels or departments. It is especially valuable for omnichannel experiences where a user might start on a website, continue through a call center, and finish in a physical location. Use it when you need to align cross-functional teams, uncover the root cause of systemic issues like long wait times or corrupted data, or identify opportunities to reuse information across touchpoints.
When not to use it
Do not use a service blueprint for simple single-channel interactions with no backstage complexity, such as a standalone landing page or a basic email flow. It is also the wrong tool when you only want to evaluate surface-level usability or emotional sentiment, because it focuses on operational mechanics rather than user feelings. If your organization is not willing to act on internal process changes, the exercise will produce wall art instead of outcomes.
One canonical example
A restaurant chain wants to improve its dining experience. Instead of mapping one generic visit, the team creates separate service blueprints for two distinct journeys: ordering food for takeout versus dining in. The takeout blueprint reveals that the kitchen display system does not sync with the mobile app, causing prep delays, while the dine-in blueprint shows that hosts re-enter customer preferences that were already collected by the reservation platform. By visualizing these specific journeys and their backstage processes, the chain eliminates redundant data entry and fixes the integration gap.
Interview question
A company's journey map shows customers are frustrated with slow support responses at the ticket submission touchpoint. What would a service blueprint most likely reveal that the journey map cannot?
- a.That the submission form has poor visual hierarchy and confusing labels
- b.That a missing integration between backstage departments is causing the symptomCorrect
- c.That frontstage staff need empathy training to handle frustrated users
- d.That switching to live chat would improve customer emotional sentiment
Why? this is the answer
The card states that service blueprinting exposes backstage operational causes such as missing integrations between departments, whereas journey maps surface symptoms and emotions at touchpoints. The distractors describe surface-level usability, emotional sentiment, or frontstage training, which the card identifies as outside a blueprint's scope.
