Socket.IO Adapters: Scaling Beyond One Server

Why it exists

A single Node.js process can only handle a finite number of WebSocket connections. To scale, you run multiple instances of your application. However, a client connected to Server A is invisible to Server B, meaning a broadcast message like io.emit() from Server B would never reach it.

The mental model

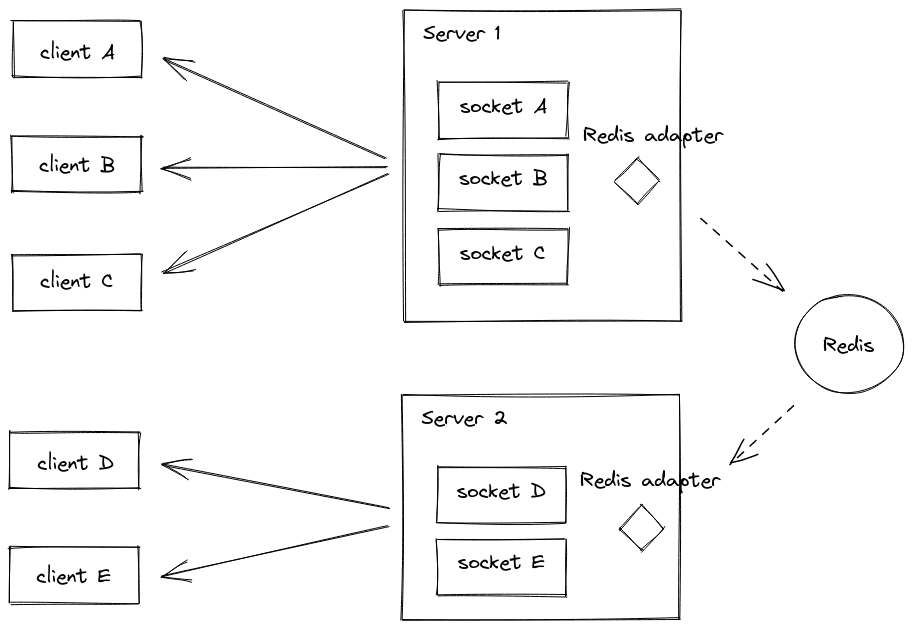

Think of an adapter as a central post office for your Socket.IO servers. Without it, each server is an isolated island. With an adapter, when a server wants to send a broadcast, it sends the message to the post office (Redis). The post office then delivers it to all other servers, which pass it to their connected clients.

How it works

The Redis adapter uses Redis's native Pub/Sub feature. When a server executes a broadcast (e.g., io.to("room1").emit()), it performs two actions: first, it sends the packet to all matching clients connected directly to it. Second, it publishes the packet to a Redis channel. All other Socket.IO servers in your cluster are subscribed to that channel. Upon receiving the packet from Redis, they forward it to their own connected clients that match the broadcast criteria. This requires two Redis client connections per server: one for publishing (pub) and one for subscribing (sub).

When to use it

Use an adapter any time you run your Socket.IO application on more than one process or server. This is standard practice for production environments to achieve high availability and horizontal scaling. Without it, broadcasts and room-based communication will fail unpredictably depending on which server a client is connected to.

When not to use it

An adapter is unnecessary for simple single-process applications or local development. A key limitation is that the standard Redis adapter does not support the connection state recovery feature. If your application must gracefully handle temporary client disconnects, this adapter may not be suitable. Also, the official documentation recommends using the ioredis package over the redis package due to potential reconnection bugs.

One canonical example

The recommended setup uses the ioredis library. First, install the dependencies: npm install @socket.io/redis-adapter ioredis. Then, configure the server:

import { Server } from "socket.io";
import { Redis } from "ioredis";
import { createAdapter } from "@socket.io/redis-adapter";
const pubClient = new Redis();
const subClient = pubClient.duplicate();
const io = new Server({ adapter: createAdapter(pubClient, subClient) });
io.listen(3000);
